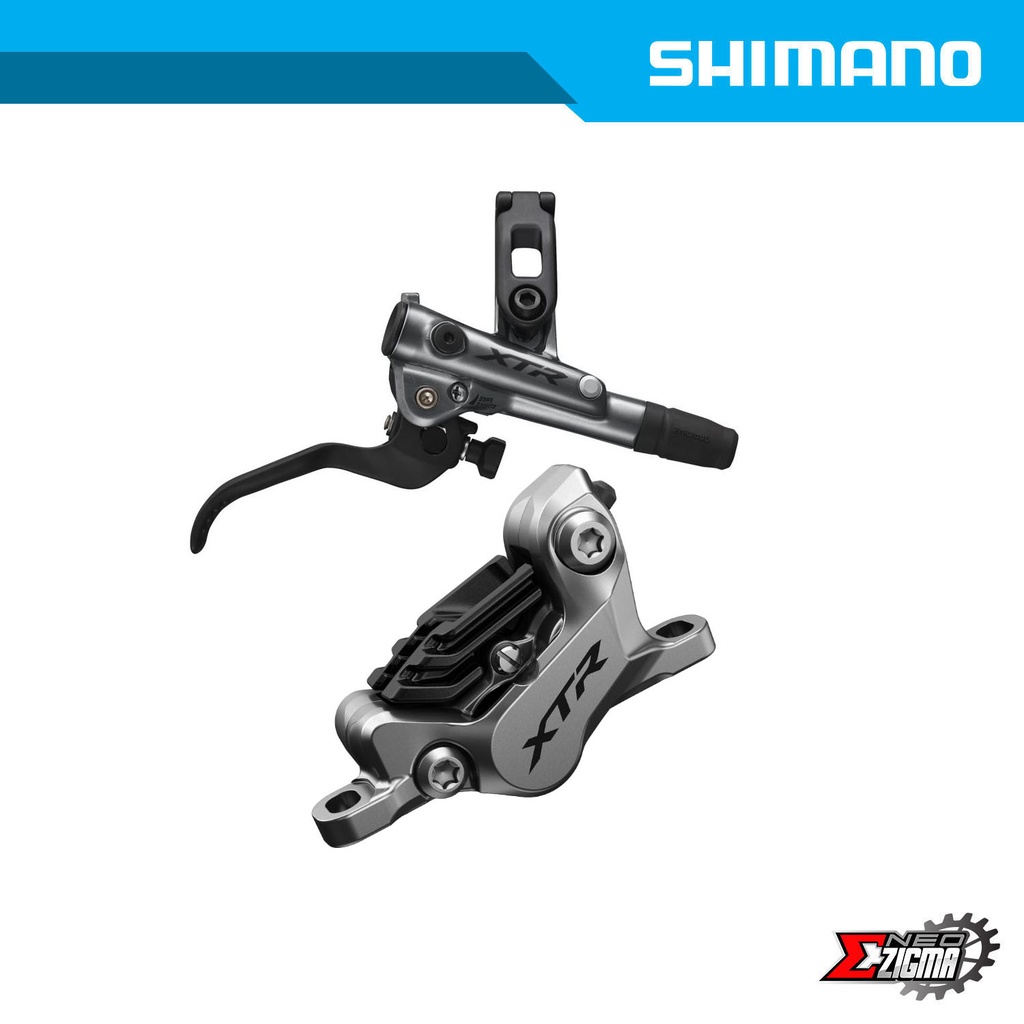

XTR - ICE TECHNOLOGIES - 4-Piston - Hydraulic Disc Brake Caliper
The XTR M9120 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and four ceramic pistons for perfect, Rider Tuned stopping power.
FEATURES
- High-performance brake control
- Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000
- High power
- 10% braking power up (vs. M9020)
- 4 piston low-profile design
- Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M9120 |
|---|
| SERIES | XTR M9100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 262 |
|---|
| Remarks | ** Titanium |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SBM |
|---|
| Hose joint | Banjo |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | N03A-RF Resin (w/ fin) |
|---|
| Pad|Standard 2 | N04C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | BL-M9120 |
|---|
| Recommended disc brake rotor | RT-MT900 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Oil | SHIMANO Mineral |
|---|
| Mount type | Post-type |
|---|
| Piston | 4 |
|---|
| Caliper fixing bolt|Tool size | ** 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Wiring |
|---|
| Pad mount | Pad axle |
|---|
