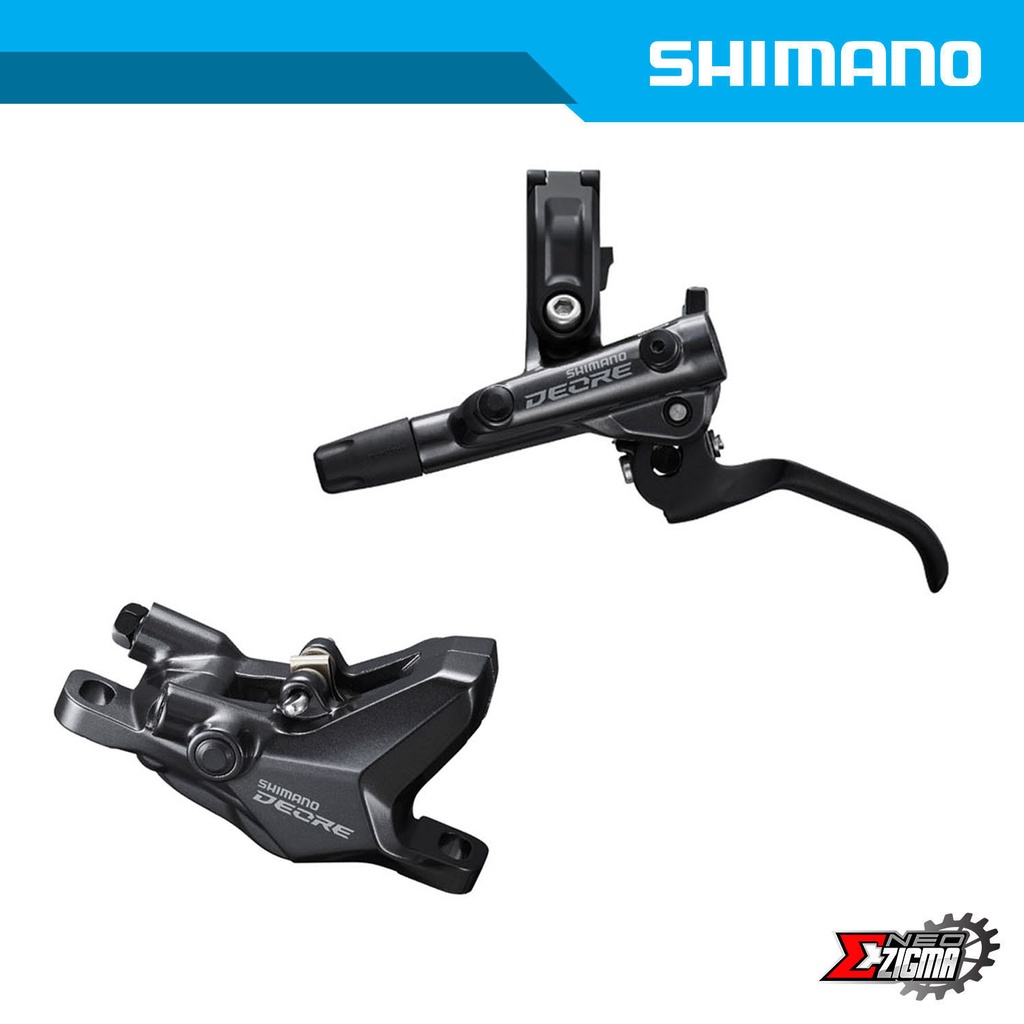

SHIMANO DEORE - 2-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SHIMANO DEORE M6100 caliper features lightweight braking performance and reliable stopping power in all conditions.
FEATURES
- Superior modulation gives you the power you need at low weight
- Quick piston retraction
- Lightweight 2-piston disc brake caliper
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M6100 |
|---|
| SERIES | DEORE M6100 Series |
|---|
| Color | Series Color | Black (SHIMANO logo) *** |
|---|
| Remarks | *: Only compatible with resin pad |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SS |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | G05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | J05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | G04S-MX Metal (w/o fin) |
|---|
| Recommended brake lever | BL-M6100 |
|---|
| Recommended disc brake rotor | SM-RT54* SM-RT56* SM-RT64 SM-RT66 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Oil | SHIMANO Mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Post-type |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 5 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Snap ring |
|---|
| Pad mount | Split pin Stainless Steel |
|---|
SHIMANO DEORE - Hydraulic Disc Brake Lever - I-SPEC EV
With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.
FEATURES
- Intuitive and powerful braking
- Quicker brake engagement with shorter free stroke
- Rider tunable and action-optimized cockpit
- High-performance brake control
- Additional contact point for a stiffer brake lever
- 10 deg. rotation angle setting range for I-SPEC EV shifting lever
PRODUCT SPECIFICATIONS
| MODEL NO | BL-M6100 |
|---|
| SERIES | DEORE M6100 Series |
|---|
| Color | Series Color | Black (SHIMANO Logo) |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 2 |
|---|
| Brake hose (Kit) | SM-BH90-SS |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| SERVO WAVE | ✔ |
|---|
| Reach adjust|Tool | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC EV | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 10 |
|---|
| Recommended brake caliper | BR-M6100 BR-M6120 |
|---|
| Oil | SHIMANO Mineral |
|---|
| Funnel bleeding | ✔ |
|---|
