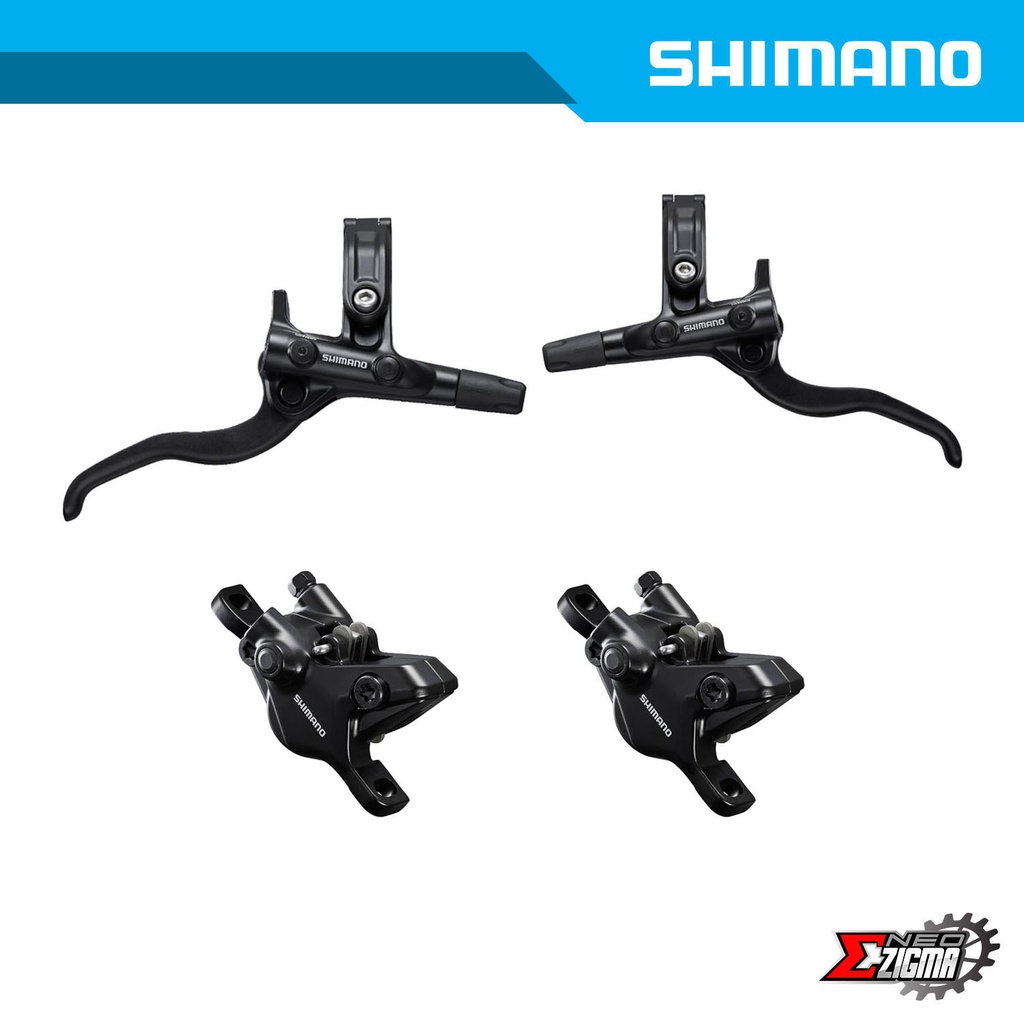

SHIMANO DEORE - 2-piston - Hydraulic Disc Brake Caliper - MTB
The SHIMANO MT410 hydraulic disc brake delivers long-lasting performance and quick, easy installation and adjustment.
FEATURES
- Superior modulation gives you the power you need
- Quick piston retraction
- Lightweight 2-piston disc brake caliper
PRODUCT SPECIFICATIONS
| MODEL NO | BR-MT410 |
|---|
| SERIES | DEORE M4100 Series |
|---|
| Color | Black (SHIMANO logo) |
|---|
| Remarks | * Only compatible with resin pad |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH59-JK-SS |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| Pad|Standard 1 | B05S-RX Resin (w/o fin) |
|---|
| Recommended brake lever | BL-M4100 |
|---|
| Recommended disc brake rotor | SM-RT30 *, SM-RT54 *, SM-RT56 * |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Post type |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 5 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Snap ring |
|---|
| Pad mount | Split pin (stainless steel) |
|---|
SHIMANO - Hydraulic Disc brake Lever - I-SPEC EV Clamp Band
With quicker brake engagement and shorter free stroke, the SHIMANO BL-M4100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.
FEATURES
- Intuitive and powerful braking
- Quicker brake engagement with shorter free stroke
- Rider tunable and action-optimized cockpit
- High-performance brake control
- Additional contact point for a stiffer brake lever
- 10 deg. rotation angle setting range for I-SPEC EV shifting lever
PRODUCT SPECIFICATIONS
| MODEL NO | BL-M4100 |
|---|
| SERIES | DEORE M4100 Series |
|---|
| Color | Black (SHIMANO logo) |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 2 |
|---|
| Brake hose (Kit) | SM-BH59-JK-SS (for BR-MT410) SM-BH90-SS (for BR-MT420) |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| Reach adjust|Tool | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC EV | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 10 |
|---|
| Recommended brake caliper | BR-MT410 BR-MT420 |
|---|
| Oil | SHIMANO mineral |
|---|
| Funnel bleeding | ✔ |
|---|
