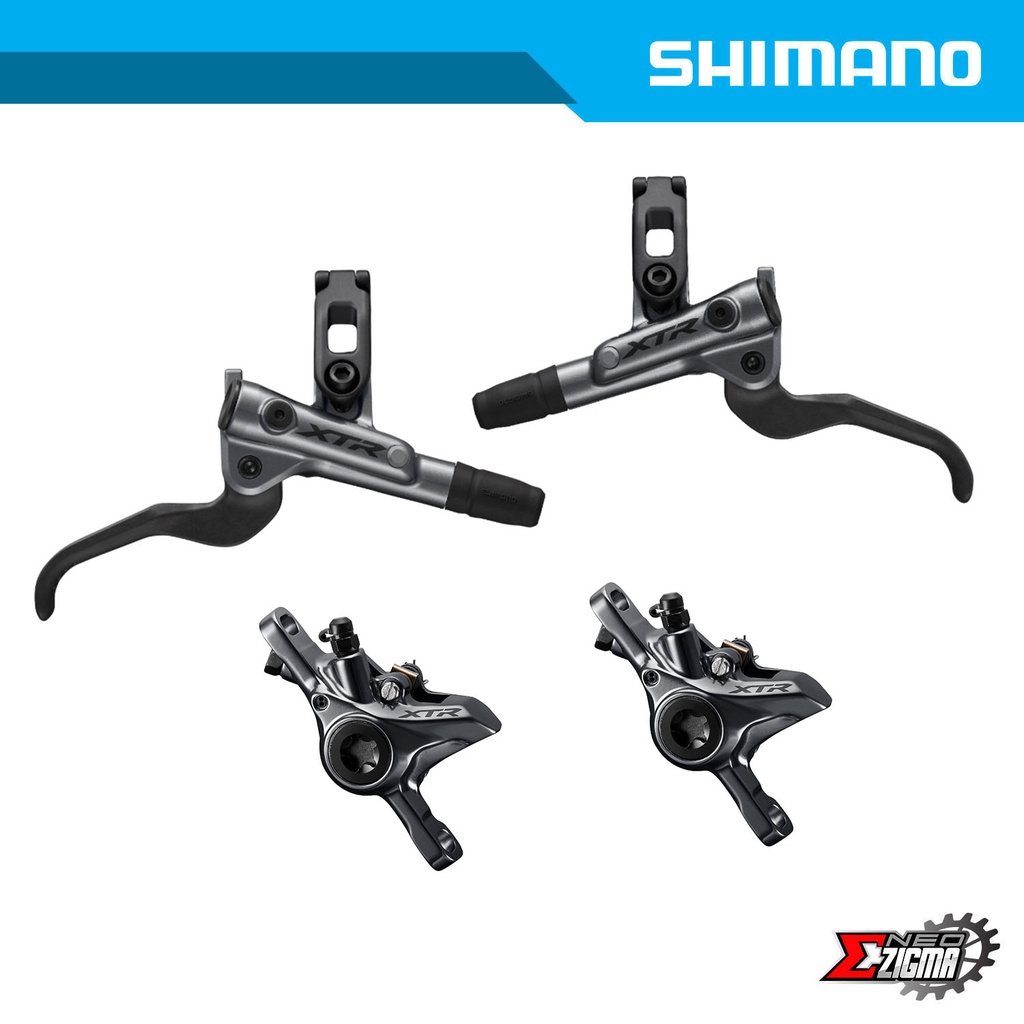

SHIMANO XTR - Hydraulic Disc Brake Lever - I-SPEC EV Clamp Band
With a focus on reduced weight and cross-country tuned stopping power, the SHIMANO XTR BL-M91000 lever provides intuitive modulation so that you can explore your limits with confidence.
FEATURES
- Seamless operation
- Quicker rebound between actions maintains rider concentration
- Greater flexibility and action-optimized cockpit layout
- Update brake lever shape
- High rigidity
- 10% stiffer than M9000 even under high temp conditions
- Lightweight
- Magnesium master cylinder
- 26 g lighter (vs. BL/BR-M9000 with disc brake rotor)
- Quicker brake engagement with shorter free stroke
PRODUCT SPECIFICATIONS
| MODEL NO | BL-M9100 |
|---|
| SERIES | XTR M9100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 66 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 2 |
|---|
| Brake hose (Kit) | SM-BH90-SS |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| Reach adjust|Tool | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC EV | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 60 |
|---|
| Recommended brake caliper | BR-M9100, BR-M9110-R |
|---|
| Oil | SHIMANO mineral |
|---|
| Funnel bleeding | ✔ |
|---|
XTR - 2-Piston - Hydraulic Disc Brake Caliper
The XTR M9100 caliper features a MONO-BODY design which is machined from a single cold forged block to maximize rigidity and a pair of ceramic pistons for perfect, Rider Tuned stopping power.
FEATURES
- High-performance brake control
- Higher braking force with reduced input force at finger tips highly linear response, and braking power, stroke, and time lag reduced by 30% compared with M9000
- High rigidity
- New high rigidity brake hose and 1-piece aluminum caliper
- Lightweight
- 26 g lighter (vs. BL/BR-M9000 with disc brake rotor)
- Straight hose connection
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M9100 |
|---|
| SERIES | XTR M9100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 92 |
|---|
| Remarks | ** Titanium |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SS |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| Pad|Standard 1 | K05Ti-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | K04Ti-MX Metal (w/o fin) |
|---|
| Recommended brake lever | BL-M9100 |
|---|
| Recommended disc brake rotor | RT-MT900 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Post type |
|---|
| Piston | 2 |
|---|
| Caliper|MONO-BODY | ✔ |
|---|
| Caliper fixing bolt|Tool size | ** 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Wiring |
|---|
| Pad mount | Pad axle |
|---|
