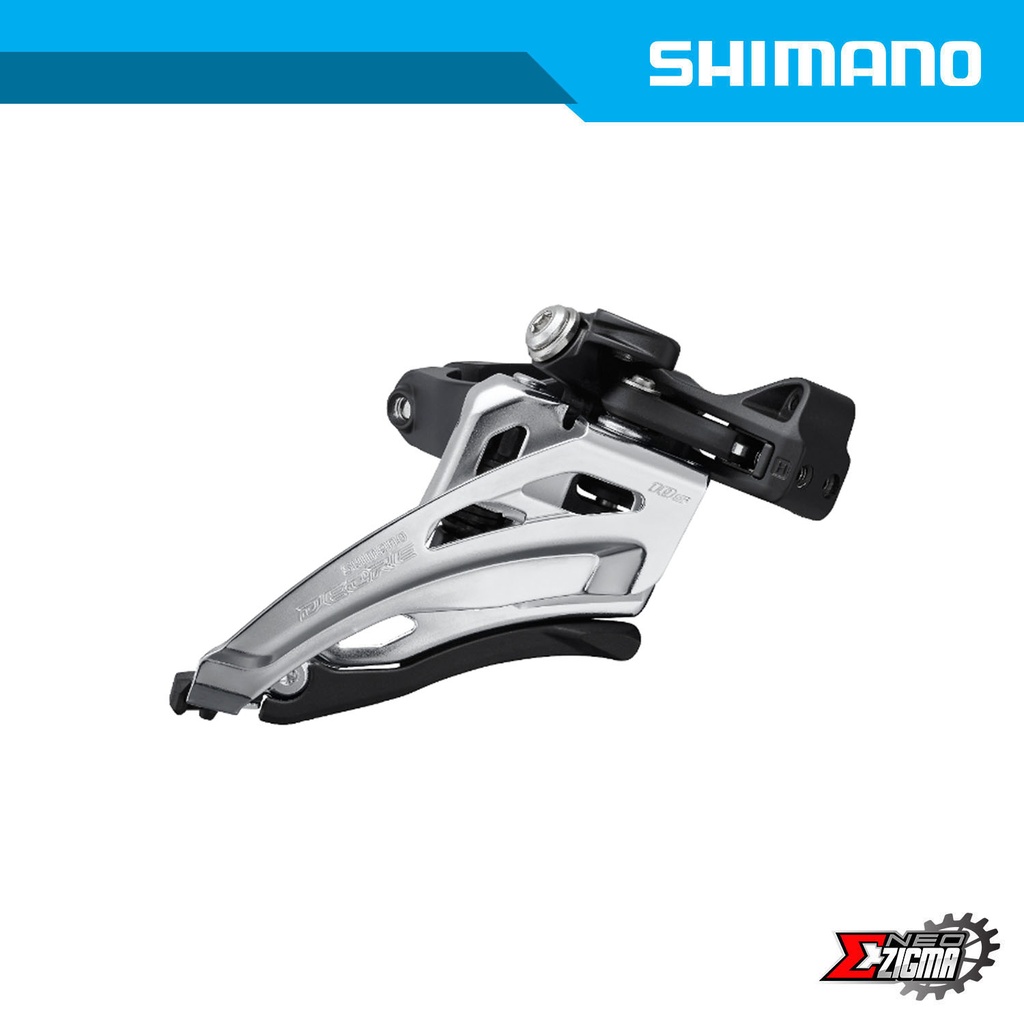

SHIMANO DEORE - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x10-speed
The SHIMANO FD-M4100 2x10-speed front derailleurs use SHIMANO's new SIDE SWING technology for enhanced cable routing, light action, and smooth operation. The new design also increases clearance for large wheels and short chain stays.
FEATURES
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider traction range reduces chain rub for rear suspension bikes
- Extra wide range with front double 36-26T
- Wider tire clearance
- Compatible with 2.3-inch tire on wider rims
- Different options available
- Available in D, E, and M-type mounts
- *M type mount requires adapter (ø34.9 mm)
- One spec for 48.8 mm & 51.8 mm chainline
PRODUCT SPECIFICATIONS
| MODEL NO | FD-M4100-M |
|---|
| SERIES | DEORE M4100 Series |
|---|
| Color | Series color |
|---|
| Remarks | * S-size adapter is available in OTC package only. |
|---|
| Front speeds | 2 |
|---|
| Rear speeds | 10 |
|---|
| Compatible chain | HG-X 10-speed |
|---|
| Action|SIDE SWING | ✔ |
|---|
| Mount|Clamp Band (mm)|28.6 | - * |
|---|
| Mount|Clamp Band (mm)|31.8 | X (w/ M size adapter) |
|---|
| Mount|Clamp Band (mm)|34.9 | ✔ |
|---|
| Cable route type|Front-Pull | ✔ |
|---|
| Chain line (mm) | 48.8/51.8 |
|---|
| Chain stay angle (deg.) | 66-69 |
|---|
| Top gear teeth | 36T |
|---|
| Total capacity | 10T |
|---|
| Angled stroke adjust screw | ✔ |
|---|
| Angled clamp band design | ✔ |
|---|
| Link bushings | 4 |
|---|
