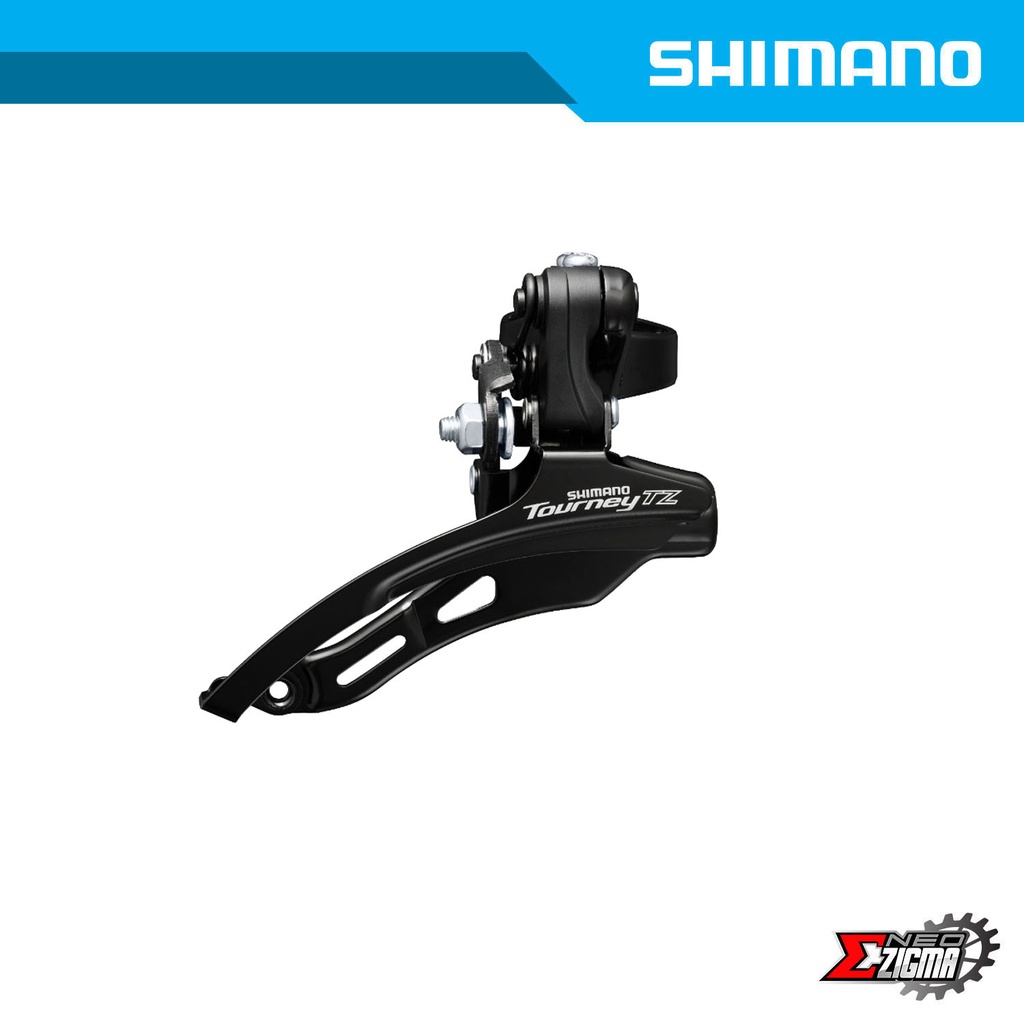

SHIMANO TOURNEY TZ - Front Derailleur - Down Swing - Clamp Band Mount - 3(friction)x8/7-speed
The SHIMANO TOURNEY TZ500 front derailleur is compatible with 3x6 speed drivetrains and 48-38-28T chainrings.
FEATURES
- Down Swing
- 48-38-28T
- Top pull/down pull
- Improved shifting performance
- Easy assembly feature
- Pre-assembled inner cable fixing nut
- Smooth, light and reliable shifting performance
- Reliable shifting performance
- Friction type
PRODUCT SPECIFICATIONS
| MODEL NO | FD-TZ510-DS6 |
|---|
| SERIES | TOURNEY TZ500 Series |
|---|
| Color | Series color |
|---|
| Front speeds | 3 (friction) |
|---|
| Rear speeds | 7/6 |
|---|
| Compatible chain | HG 8/7/6-speed |
|---|
| Action|Down Swing | ✔ |
|---|
| Mount|Clamp Band (mm)|28.6 | ✔ |
|---|
| Mount|Clamp Band (mm)|31.8 | ✔ |
|---|
| Cable route type|Top-Pull exclusive | ✔ |
|---|
| Cable route type|Down-Pull exclusive | ✔ |
|---|
| Chain line (mm) | 47.5 |
|---|
| Chain stay angle (deg.) | 66-69 |
|---|
| Top gear teeth | 48T |
|---|
| Total capacity | 20T |
|---|
| Applicable top-mid tooth difference | 10T |
|---|
