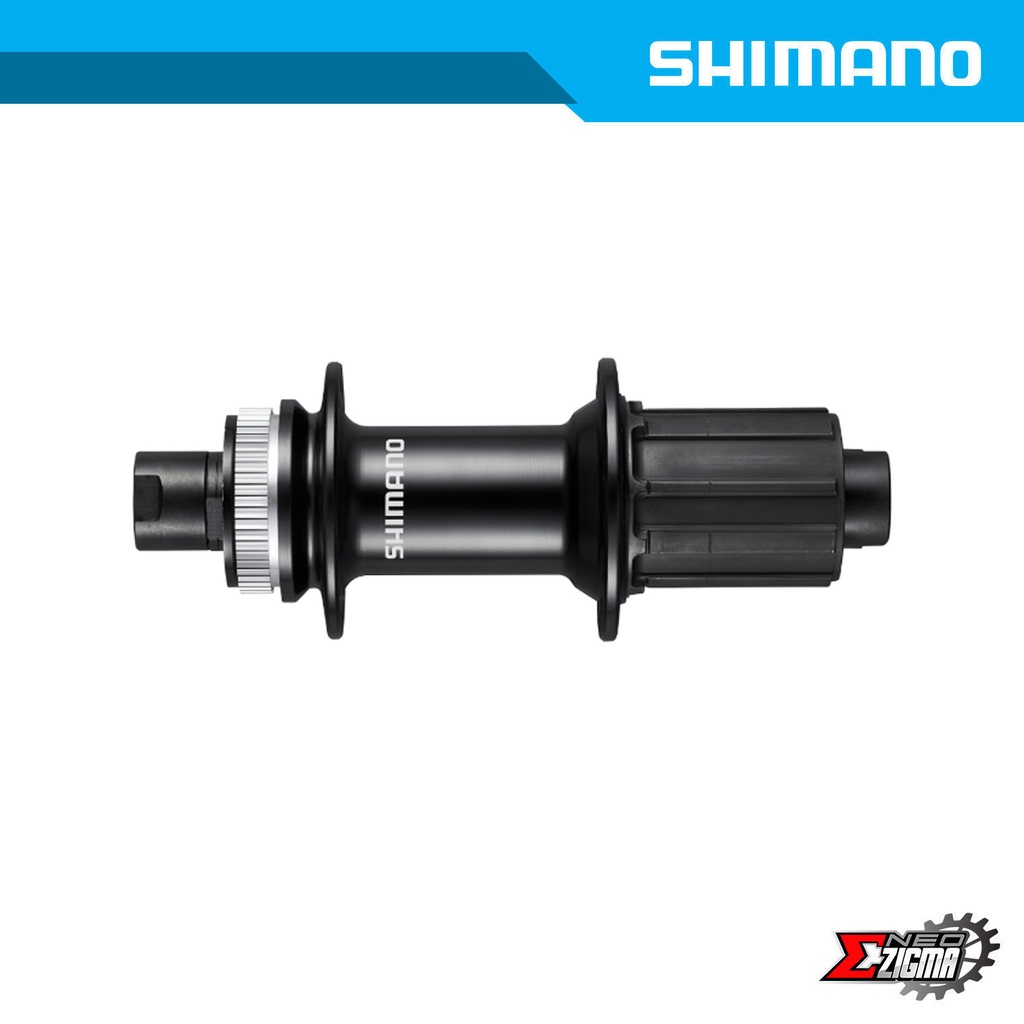

SHIMANO - Rear FREEHUB - CENTER LOCK - Disc Brake - 142x12 mm E-THRU Axle - 10/11-speed
For E-THRU disc brake compatible bicycles, the RS470 FREEHUB blends good looks and high quality performance.
FEATURES
- High quality sealing cup and cone bearing
- Internal grease sleeve
PRODUCT SPECIFICATIONS
| MODEL NO | FH-RS470 |
|---|
| SERIES | SHIMANO |
|---|
| Color | Black |
|---|
| Remarks | * Can be used for 10-speed with an additional spacer |
|---|
| Color|1 Hub shell | Black |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| Rear speeds | 11/10* |
|---|
| O.L.D. (mm) | 142 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| Internal serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | 12mm E-THRU |
|---|
| Thru Axle (Length x Inner diameter ; mm)|142 x 12 | ✔ |
|---|
| Flange distance (mm) | 55.7 |
|---|
| Offset (mm) | 7.45 |
|---|
| P.C.D. left / right (mm) | 44/45 |
|---|
| Flange diameter Left/Right (mm) | 52.8/53.8 |
|---|
| HG spline (ROAD 11-speed) | ✔ |
|---|
| Seal|Hub | Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
