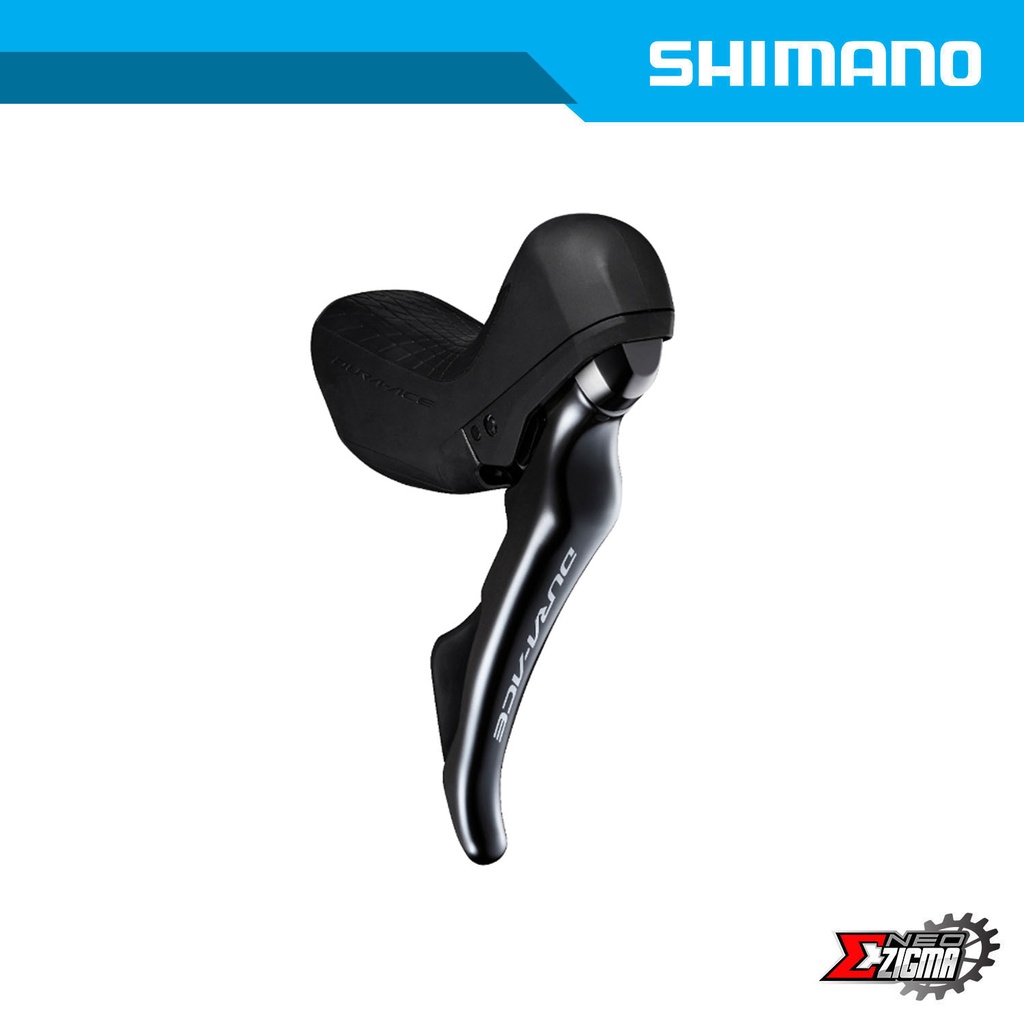

DURA-ACE Hydraulic Disc Brake - DUAL CONTROL LEVER - SERVOWAVE - 11-speed
Combining SHIMANO's well-praised hydraulic disc brake technology with light action mechanical shifting, the DURA-ACE R9120 levers have a shorter lever stroke, expanded reach adjust, and lighter front shift action.
FEATURES
- Quick and intuitive shifting operation
- Shorter lever stroke
- Redesigned internal shifting unit
- Lighter front shifting operation
- Redesign front system with new front derailleur
- Comfortable grip and operation
- More customizable and precise lever position
- Reach adjustment range (10.9 mm)
- Consistent braking performance in all weather conditions
- Easy brake control Hydraulic Brake
PRODUCT SPECIFICATIONS
| MODEL NO | ST-R9120-R |
|---|
| SERIES | DURA-ACE R9100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 538 ( /pair) |
|---|
| Bracket cover color|1 | Standard |
|---|
| Shifter type | DUAL CONTROL LEVER |
|---|
| Shift lever|Rear speeds | 11 |
|---|
| Shift lever|Max. multiple shifts (main lever/rear) | 2 |
|---|
| Shift lever|Compatible rear derailleur type | Road 11-speed |
|---|
| Brake lever|Brake hose (Kit) | SM-BH90-JK-SSR |
|---|
| Brake lever|Hose joint | Straight |
|---|
| Brake lever specifications|Brake hose color (kit)|1 | Black |
|---|
| Brake lever|Recommended brake caliper | BR-R9170 |
|---|
| Brake lever|Brake fluid|SHIMANO Mineral Oil | SHIMANO Mineral |
|---|
| Brake lever|Reach adjust|Tool | ✔ |
|---|
| Brake lever|Reach adjust | ✔ |
|---|
| Brake lever|Clamp band (mm) | 23.8-24.2 |
|---|
| Brake lever|Funnel bleeding | ✔ |
|---|
| Brake lever|Free stroke adjust | ✔ |
|---|
| Brake lever|SERVO WAVE | ✔ |
|---|
| Clamp band|Diameter (mm) | 23.8-24.2 |
|---|
| Shifter Lever body|Release | Resin & Steel |
|---|
| Shift lever cable|Outer casing|Lever side | OT-SP41 |
|---|
| Shift lever cable|Outer casing|Rear derailleur side | OT-RS900 |
|---|
| Shift lever cable|Inner cable|Polymer-coated cable | ✔ |
|---|
