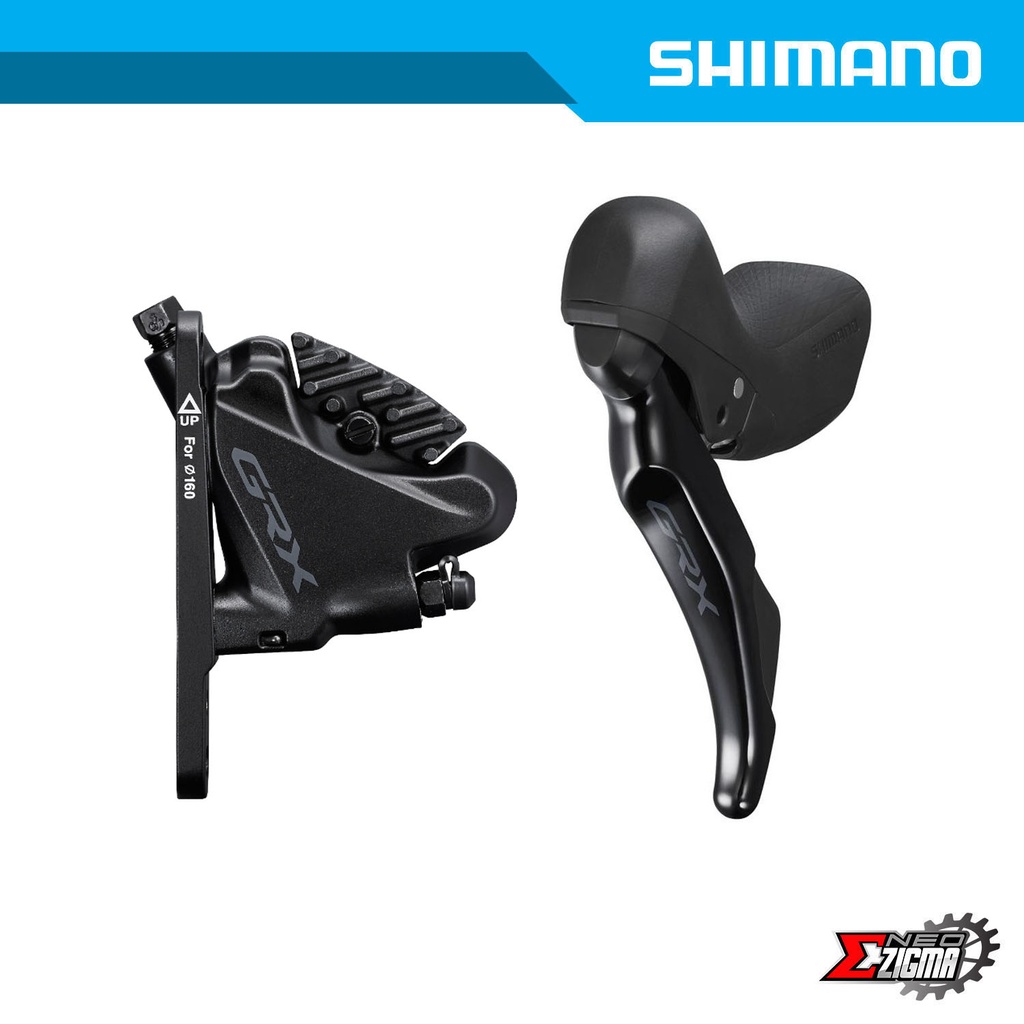

SHIMANO GRX - Hydraulic Disc Brake - DUAL CONTROL LEVER - 2x10-speed
The SHIMANO GRX DUAL CONTROL LEVER delivers light and responsive shifting for mixed-terrain riding. The ergonomic shifter design improves comfort and the textured, anti-slip brake lever increases control on bumpy terrain.
FEATURES
- Greater mixed-terrain control
- Gravel inspired lever and bracket ergonomics
- Anti-slip brake lever
- Same light shifting operation as top tier road systems
PRODUCT SPECIFICATIONS
| MODEL NO | ST-RX400-L |
|---|
| SERIES | GRX 10-speed |
|---|
| Color | Series color |
|---|
| Average weight | 306 |
|---|
| Bracket cover color|1 | Standard |
|---|
| Shifter type | DUAL CONTROL LEVER |
|---|
| Shift lever|Front speeds | 2 |
|---|
| Brake lever|Brake hose (Kit) | SM-BH90-JK-SSR SM-BH90-J-SSR |
|---|
| Brake lever|Hose joint | Straight |
|---|
| Brake lever specifications|Brake hose color (kit)|1 | Black |
|---|
| Brake lever|Recommended brake caliper | BR-RX400 |
|---|
| Brake lever|Brake fluid|SHIMANO Mineral Oil | SHIMANO Mineral |
|---|
| Brake lever|Reach adjust|Tool | ✔ |
|---|
| Brake lever|Reach adjust | ✔ |
|---|
| Brake lever|Funnel bleeding | ✔ |
|---|
| Clamp band|Diameter (mm) | 23.8 - 24.2 |
|---|
| Shifter Lever body|Release | Resin & Steel |
|---|
| Shift lever cable|Outer casing|Lever side | OT-SP41 |
|---|
| Shift lever cable|Outer casing|Rear derailleur side | OT-RS900 |
|---|
| Shift lever cable|Inner cable|OPTISLICK | ✔ |
|---|
SHIMANO GRX - Flat Mount - Hydraulic Disc Brake - Brake Caliper
With a low-profile Flat Mount design, the SHIMANO GRX BR-RX400 hydraulic disc brakes provide greater control for mixed terrain riding.
FEATURES
- Never hesitate to tackle rough surfaces
- Excellent heat dissipation
- ICE TECHNOLOGIES
- Flat mount
- Simple set up and maintenance
- Convenient tool access
- Easy hose joint system (J-kit)
- Simple wheel replacement
- Easy and clean bleeding system
- ONE WAY BLEEDING
PRODUCT SPECIFICATIONS
| MODEL NO | BR-RX400-F |
|---|
| SERIES | GRX 10-speed |
|---|
| Color | Series color |
|---|
| Remarks | Front spec with adaptor |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR SM-BH90-J-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | ST-RX400 |
|---|
| Recommended disc brake rotor | SM-RT64 |
|---|
| Oil | SHIMANO Mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fixing pin, snap ring |
|---|
| Pad mount | Pad axle |
|---|
