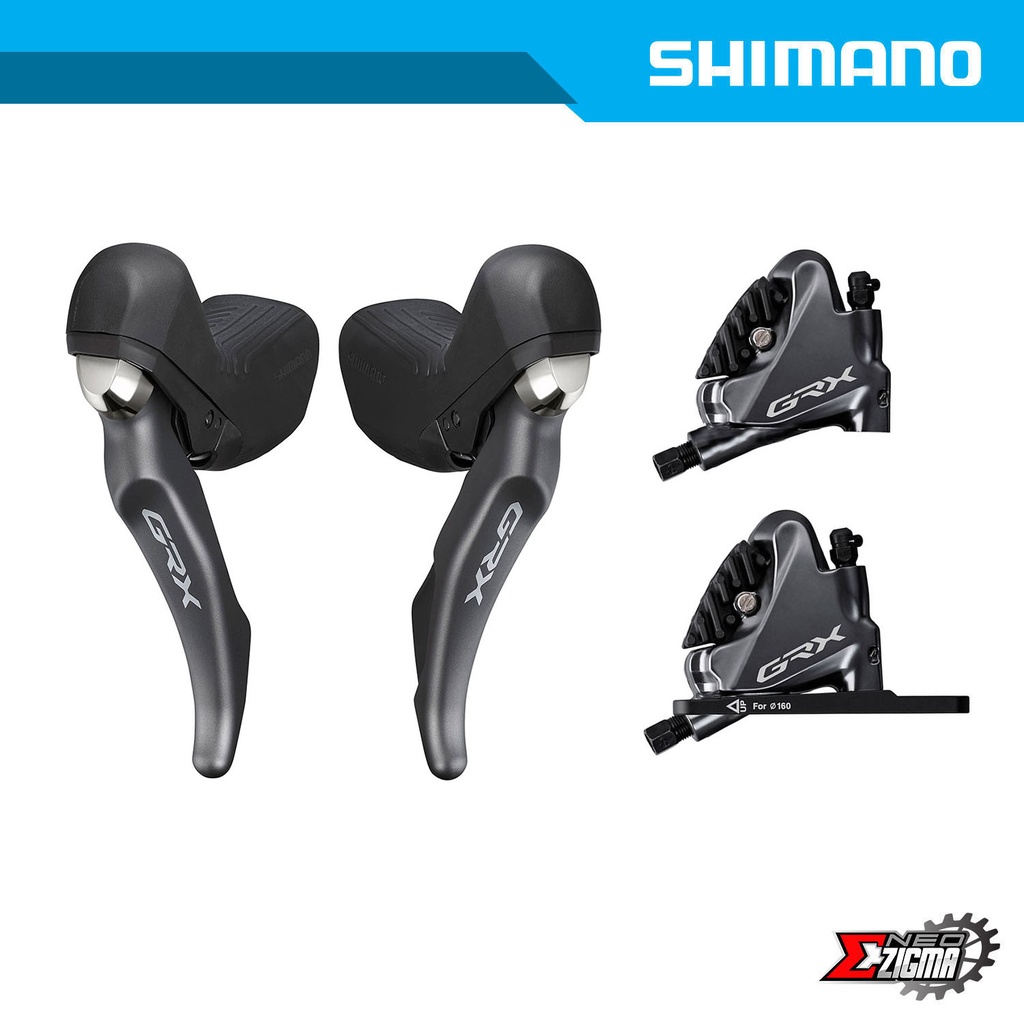

SHIMANO GRX - Flat Mount - Hydraulic Disc Brake - Brake Caliper
With a low-profile Flat Mount design, the SHIMANO GRX BR-RX810 hydraulic disc brakes provide greater control for mixed terrain riding.
FEATURES
- Never hesitate to tackle rough surfaces
- Excellent heat dissipation
- ICE TECHNOLOGIES
- Flat mount
- Simple set up and maintenance
- Convenient tool access
- Easy hose joint system (J-kit)
- Simple wheel replacement
- Easy and clean bleeding system
- ONE WAY BLEEDING
PRODUCT SPECIFICATIONS
| MODEL NO | BR-RX810-F |
|---|
| SERIES | GRX 11-speed |
|---|
| Color | Series color |
|---|
| Average weight | 141 |
|---|
| Remarks | Front spec with adaptor |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | ST-RX810 BL-RX810 ST-RX815 |
|---|
| Recommended disc brake rotor | SM-RT800, RT-MT800 |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fix pin+Snap ring |
|---|
| Pad mount | Pad axle |
|---|
PRODUCT SPECIFICATIONS
| MODEL NO | BR-RX810-R |
|---|
| SERIES | GRX 11-speed |
|---|
| Color | Series color |
|---|
| Average weight | 124 |
|---|
| Remarks | Front spec with adaptor |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
|---|
| Fixing screw spec for rear mount|10 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|15 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|20 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|25 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|30 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|35 mm mount | ✔ |
|---|
| Recommended brake lever | ST-RX810 BL-RX810 ST-RX815 |
|---|
| Recommended disc brake rotor | SM-RT800, RT-MT800 |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fix pin+Snap ring |
|---|
| Pad mount | Pad axle |
|---|
SHIMANO GRX - Hydraulic Disc Brake - DUAL CONTROL LEVER - SERVO WAVE ACTION - 1x11-speed
The SHIMANO GRX BL-RX810-L shifter bring greater rider control for mixed terrain riding thanks to SHIMANO's category-leading hydraulic disc brakes.
FEATURES
- Greater mixed-terrain control
- Gravel inspired lever and bracket ergonomics
- Anti-slip ribbed surface texture and brake lever coating
PRODUCT SPECIFICATIONS
| MODEL NO | BL-RX810-L |
|---|
| SERIES | GRX 11-speed |
|---|
| Color | Series color |
|---|
| Average weight | 222 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Bracket cover color|1 | Standard |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| SERVO WAVE | ✔ |
|---|
| Reach adjust|Tool | ✔ |
|---|
| Free stroke adjust | ✔ |
|---|
| Clamp band|Diameter (mm) | 23.8-24.2 |
|---|
| Recommended brake caliper | BR-RX810 |
|---|
| Oil | SHIMANO Mineral |
|---|
| Funnel bleeding | ✔ |
|---|
