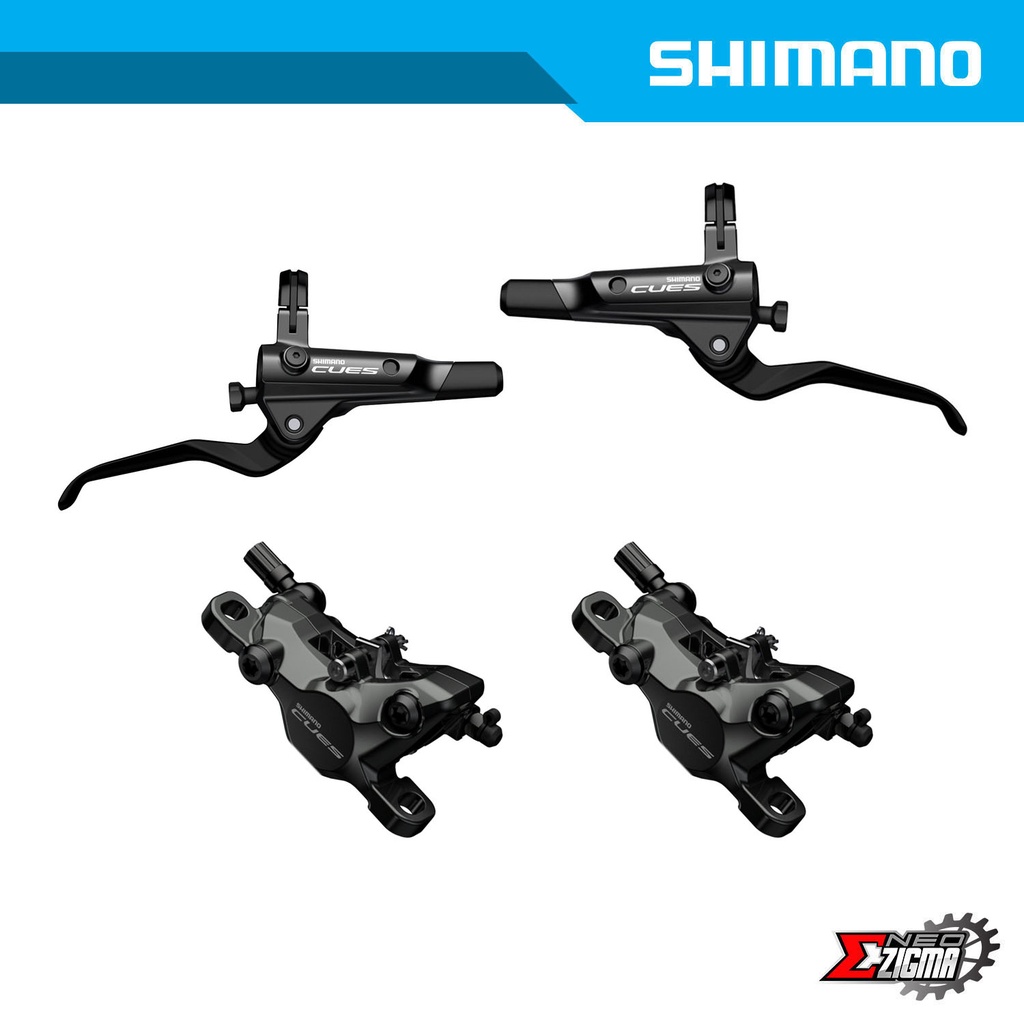

2-Piston hydraulic braking for reliable control
Confidently control your speed with this lightweight 2-piston hydraulic disc brake caliper with ICE TECHNOLOGIES. E-bikers will also benefit from its superior modulation and excellent braking control.
FEATURES
- Excellent brake modulation provides finer braking control throughout the full range of the brake lever
- Lightweight 2-piston design for lightweight and reliable braking performance in all conditions
- Quick and easy assembly
- Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
| MODEL NO | BR-U8000 |
|---|
| SERIES | CUES U8000 Series |
|---|
| Color | Series color |
|---|
| Average weight | 107 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SBM |
|---|
| Hose joint | Banjo |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | G05A-RX Resin (w/o fin) |
|---|
| Pad|Option 1 | G04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | J05A-RF Resin (w/ fin) |
|---|
| Fixing screw spec for rear mount|18.7 mm | ✔ |
|---|
| Recommended brake lever | BL-U8000 |
|---|
| Recommended disc brake rotor | RT-MT800 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Compatible brake rotor size|220 mm (LL) | ✔ |
|---|
| Oil | SHIMANO mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Post type |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 5 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Snap ring |
|---|
| Pad mount | Pad axle |
|---|
Designed for exceptional ergonomics and braking control
This newly shaped brake lever creates a more comfortable interface with improved ergonomics. E-bikers will also benefit from its superior modulation and excellent braking control.
FEATURES
- Ergonomics enhanced by moving the brake lever's center of rotation closer to the handlebar
- Superior modulation proves excellent braking power for e-trekking bikes
PRODUCT SPECIFICATIONS
| MODEL NO | BL-U8000 |
|---|
| SERIES | CUES U8000 Series |
|---|
| Color | Series color |
|---|
| Average weight | 110 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 3 |
|---|
| Brake hose (Kit) | SM-BH90 |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| Reach adjust|Toolless | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC II | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Recommended brake caliper | BR-U8000, BR-U8020 |
|---|
| Oil | SHIMANO mineral |
|---|
| Funnel bleeding | ✔ |
|---|
