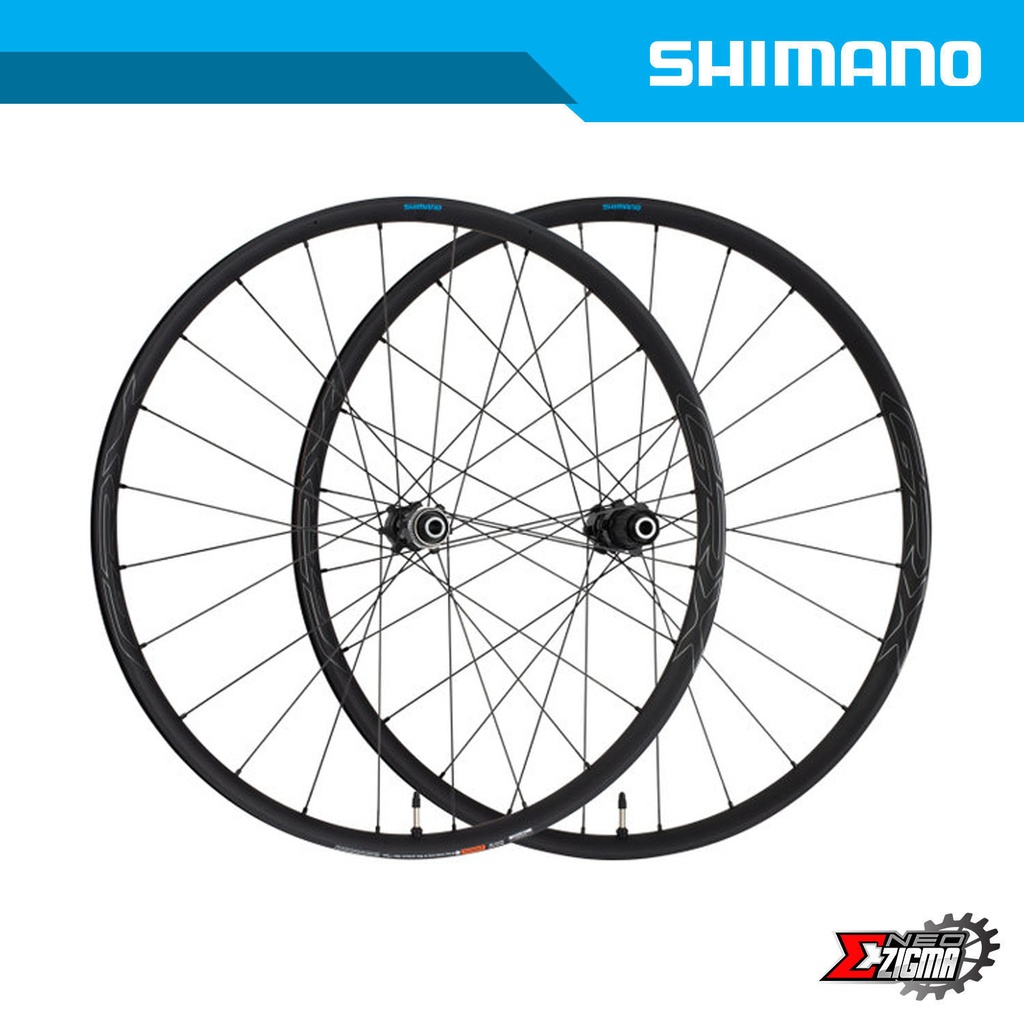

SHIMANO GRX - 700C - Tubeless - 100x12 mm Thru Axle - CENTER LOCK - Front Wheel
For exploring beyond the usual roads and trails, SHIMANO GRX RX570 wheels deliver reliable performance for diverse riding conditions. Featuring wider, 21.6 mm internal rim widths, the GRX wheels can accommodate robust gravel tubeless tires and feature CENTER LOCK disc brakes and 12 mm thru axles. Built to withstand the rigors of gravel riding, the RX570 wheels are available in both 700C and 650B wheel sizes.
FEATURES
- Gravel-Tuned Wheelset & Gear Ratios
- Wide tubeless rim limits flex under hard cornering
- Inner width rim (700C and 650B)
- Rotational feel similar to smaller wheels
- Optimally balanced for quick and reliable multi-surface riding
- High rigidity and durability without additional weight
- Straight spoke hub
- MTB-inspired asymmetrical mud-shedding rim shape
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RX570-TL-F12-700C |
|---|
| SERIES | GRX 10-speed |
|---|
| Color | Black |
|---|
| Average weight | 769 |
|---|
| Model name | WH-RX570-TL |
|---|
| Specification | F12-700C |
|---|
| Color|1 Hub shell | Black |
|---|
| Front/Rear | Front |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Wheel Size | 622 x 21C (700C) |
|---|
| Tire|Type | Tubeless |
|---|
| Tire|Recommended size | 32-622 - 42-622 |
|---|
| Rim|Height (mm) | 22 |
|---|
| Rim|Internal width (mm) | 21.6 |
|---|
| Rim|External width (mm) | 26 |
|---|
| Rim|Rim joint | Welded |
|---|
| Rim|OFFSET RIM | ✔ |
|---|
| Rim|Requires rim tape | ✔ |
|---|
| Spokes|Number | 24 |
|---|
| Spokes|Straight pull | ✔ |
|---|
| Spokes|Bladed | ✔ |
|---|
| Spokes|Diameter (mm) | 2 |
|---|
| Axle fixing method | E-THRU |
|---|
| Thru axle (length x inner diameter ; mm)|100 x 12 | ✔ |
|---|
| Disc mount|CENTER LOCK | ✔ |
|---|
| Disc mount|140 mm Disc brake rotor compatible | ✔ |
|---|
| Seal|Hub | Contact |
|---|
| Internal grease sleeve | ✔ |
|---|
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
|---|
| Reflector|AS | CATEYE RR-550-WUA SW |
|---|
| Reflector|DIN | CATEYE RR-317-WUA SW |
|---|
